TIG keevitusseade 200DC Multipro Pulse 200A 230V

TÕLKIMISEL

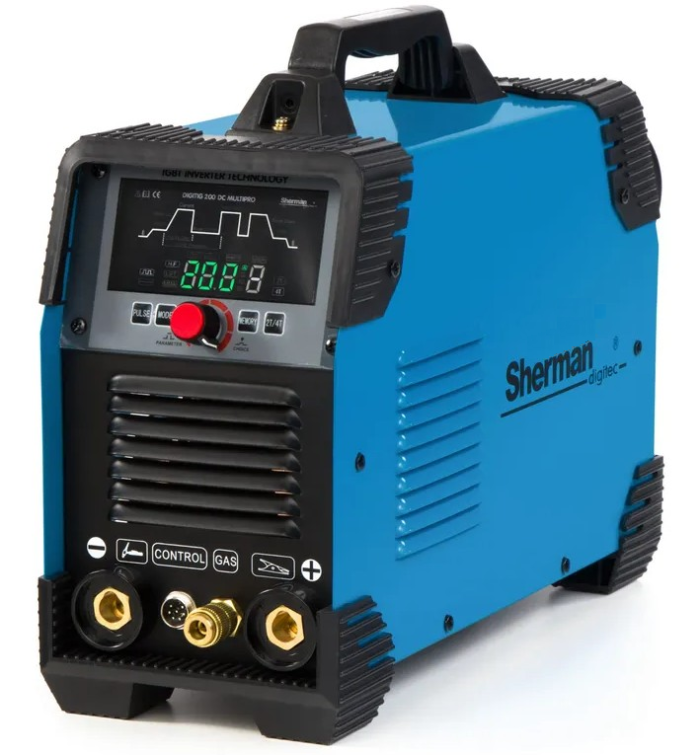

The digital welder DIGITIG 200DC MULTIPRO is the latest generation device, designed for professional use.
It is made in IGBT technology and equipped with digital control.
It is used for manual welding with direct current using the TIG HF and TIG Lift methods of steel and non-ferrous metals.
The device is equipped with the option of MMA welding (coated electrode).
The device enables full digital regulation and control of the welding parameters of the arc and pulse characteristics.
It has HF ignition, ARC FORCE function, 2T / 4T switch and welding current display and memory sets.
The welder has the memory of the last settings, i.e. after turning it off and on again, the last set parameters are restored.
It is also possible to save 20 sets of pulse and welding current parameter settings.
The set includes a TIG welding torch, electrode cable and ground cable.

Supply voltage [V] AC 230 50Hz
Welding methods TIG HF, TIG LIFT, MMA
Welding current [A] MMA: 180, TIG: 200
Duty cycle [%] 60
Tension in the state without load. [V] 67
Max. current consumption [A] MMA: 26.6, TIG: 19.6
Max. power consumption [kVA] MMA: 5.7, TIG: 4.1
Welding current adjustment Smooth
Gas pre-flow [s] 0.1-15
Gas post flow [s] 0-15
Rising current [s] 0-15
The current will drop [s] 0-15
Initial current [A] 5-200
Base current [A] 10 - 90% of the welding current
Crater current [A] 5-200
Pulse frequency [Hz] 0.5-999
Pulse duration [%] 10-90
ARC FORCE [A] 0-10
Weight [kg] 7.5
Dimensions (L x W x H) [mm] 395 x 160 x 310
Functions Digital control, HF, Arc Force, 2T / 4T, Upslope, Downslope, Pulse, Gas pre-flow and post-flow time adjustment, Parameter display

Standard equipment:
Welding holder T-26 / 4m
Electrode cable
Mass cable
