Tööriistakapp Vista 7 sahtliga, 274 tööriista

TÕLKIMISEL

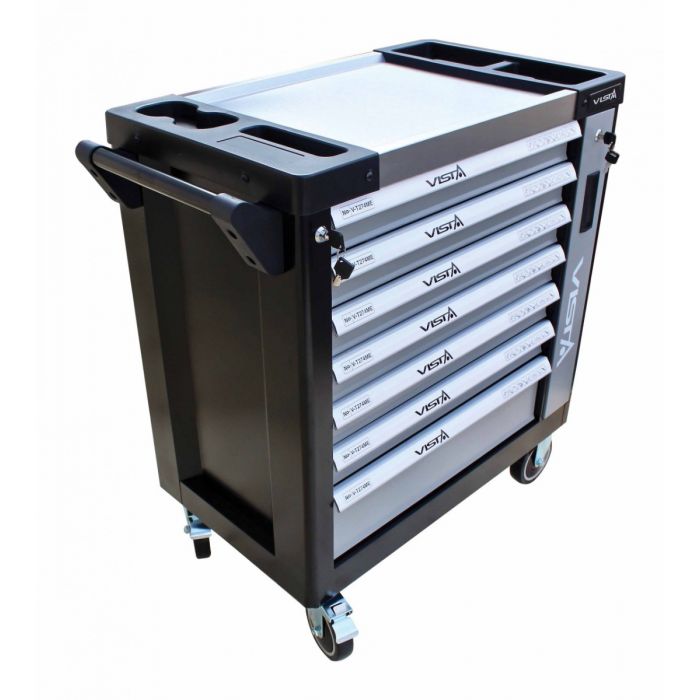

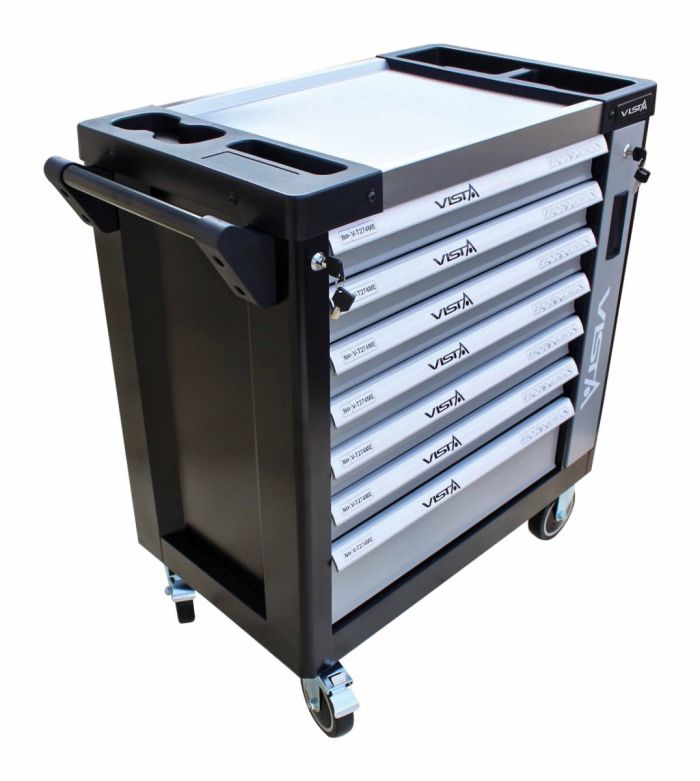

Tool trolley 7 drawers with stainless steel top.

Parameters:

cabinet dimensions: 770x460x740 mm
dimensions with wheels: 770x460x895 mm
dimensions of large drawers (1 pc): 535x395x130 mm
dimensions of small drawers (6 pcs.): 535x395x60 mm
Cartridge dimensions (7 sets): 525x390x25 mm
Metal drawer slides
Central locking with two keys
Side cabinet lockable with a key
Ergonomic handle
Pull-out side storage compartment with hinged door and key lock
sheet thickness: 0.7 mm
wheel size: 5" (two fixed wheels, two swivel wheels with brake)
Wheel Material: PP


The set includes:

Tool trolley 7 drawers with stainless steel top.

1 drawer – 117 pieces.:

L-type HEX keys with ball : 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 8 / 10
L-type TORX keys with hole: T 10 / T15 / T20 / T25 / T27 / T30 / T40 / T45 / T50
Slotted screwdriver: SL6x100mm (for striking work) / SL6x150mm / SL5x38mm
Philips screwdriver: PH2x100mm (for striking performance) / PH2x150mm / PH1x38mm
Bits with adapters – set of 40 pcs – 4 HEX bits 4, 5, 6, 7, 8, 10, 12 (30mm) and (75mm) / 14 TORX bits T20, T25, T30, T40, T45, T50, T55 (30mm) and (75mm) / 10 XZN bits 5, 6, 8, 10, 12 (30mm) and (75mm) / 2 adapters: 3/8" and 1/2" in input for 10mm bits
Flexible magnetic gripper – 400mm, d=6.5mm head
Screwdriver for 1/4" bits
Wire Tester
Bit set with magnetic holder
Impact screwdriver with bits
Socket wrenches 1/2" XZN in M14 / M16 / M18 with a length of 100mm
Foam insert


2 Drawer Socket wrench set 70 pcs.:

ratchet wrenches 72 teeth: 1/4", 1/2"
extensions: 1/4" – 52/100mm, 1/2" – 125mm
1/4" sliding handle
Flexible extension 1/4" – 135mm
Knob 1/2" sliding 3/8" – 250mm
joints: 1/4", 1/2"
knob 1/2" – 450mm
1/2"x3/8" and 1/2"x3/4" adapter
Spark plug sockets: 3/8" – 14mm; 1/2" – 16.21mm
E-TORX E24 socket in long version.
1/4" short sockets: 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
1/4" long sockets: 6, 7, 8, 9, 10, 11, 12, 13, 14 mm
1/2" short sockets: 8, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 24, 27, 30, 32 mm
1/2" long sockets: 13, 14, 15, 17, 18, 19, 22, 24 mm
E-TORX sockets short: 1/4": E6, E7, E8
E-TORX short sockets: 1/2": E10, E11, E12, E14, E16, E18, E20, E24.
foam insert


3 Drawer – Set of 32 pcs.

Combination wrenches: 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 21, 22, 24, 27 mm
Flat – flat wrench: 32x36mm
Brake hose wrench: 10×12/11x13mm
Ratchet Ring Wrench: 8×10 / 12x13mm
E-TORX Combination Wrench: E10xE12 / E14xE18 / E20xE24
Long combination wrench for tensioner: 16×18 / 17x19mm
Box-end wrench bent: 8×10; 12×13; 14×15; 16×18; 17x19mm
foam insert


4 Drawer – Accessory set 42 pcs.

File: Flat, Semi-Round, Round, Triangular 310mm
HSS Metal Drill Bit: 4; 5; 6; 8, 10mm
Caliper 150mm
Wire Brush
Hammer 500g
Cutter: 14/16/20mm
Punch: 3/4/5 mm
Punch: 4mm
Screwdriver set for screws
Tap & Die Set M3-M12
Extractor for bolts, studs and nuts 1/2" in size M. 8.5-19 mm
foam insert


5 Drawer – Hand Tool Set – 14 pcs.:

Front pliers 210mm
Extended Straight Pliers 180mm
Universal pliers 180mm
Side cutters 180mm
adjustable wrench 250mm
Pliers for cable ties
Scissors 145mm
Internal straight seger pliers 150mm
External straight circlips 150mm
Internal bent Seger pliers 150mm
External bent seger pliers 150mm
Seger pliers bent inside - 90° angle to the brake
MORSE Pliers 220mm
foam insert
