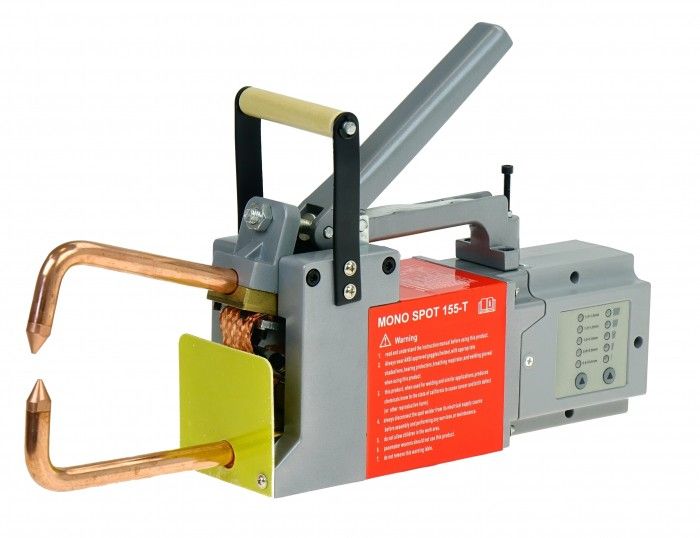

Punktkeevituse seade Mono Spot 155-T 230V 3800A

Tõlkimisel
MONO SPOT 155-T is a handheld welding machine designed for double-sided welding of low-carbon steel sheets, stainless steel sheets and galvanized sheets with a maximum thickness of 1.5 + 1.5 mm.

The device is especially recommended for repair work, small-batch production and body shops.

The welder is equipped with a control panel that allows you to set the time and thickness of the welded sheets, which significantly increases the repeatability of the joints made.

Power Parameters
Single-phase 230V power supply.

The appliance is equipped with a power plug.

Equipment
Delivery includes the device and the electrode arms.

Mains protection
C32A
Rated supply voltage
230V; 50/60Hz (1ph)
Scales
9.6kg
Overall dimensions: L x W x H
480x100x300 mm
Package dimensions L x W x H
590x160x245 mm
Idle secondary voltage
1.6V
Maximum sheet thickness for double-sided welding
1.5+1.5mm
Maximum electrode pressure
1780N
Welding current
3800A
Welding time adjustment
5-step
