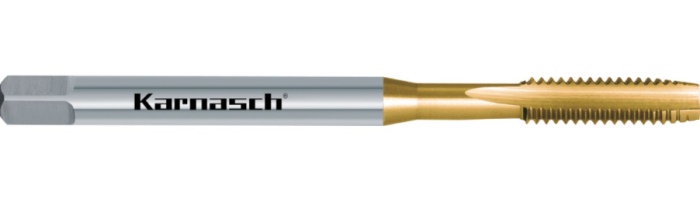

Keermepuur M5 DIN376 HSSE-Cobalt Tin coated

Tõlkimisel
HSS-Co Cobalt + TIN coated machine tap for through holes. M DIN 371/376. Metric DIN ISO 13
Cobalt steel + TIN coating for a further substantial increase in service life also when machining dry [no/little cooling]
USAGE:
Excellent for tapping in:
- High-alloyed chromium steel such as stainless [V2A / V4A]
- Acid resistant steel
- Steel
- Cast iron
- Non ferrous material
- Plastics
For best lifetime and performance during the tapping process, we recommend our universal cutting paste, art. 601159 + 601157

Thread Diam. (mm)
M5 DIN 376
D1 (mm) 4.3
D2 (mm) 3.5
L3 (mm) 25
L2 (mm) 13
L1 (mm) 70
Coating TIN
K Tool Sq End (mm)
Unknown K Tool Sq End (mm)
Metric / Imp. Metric
Pitch (mm) 900
Adapter 201820008
