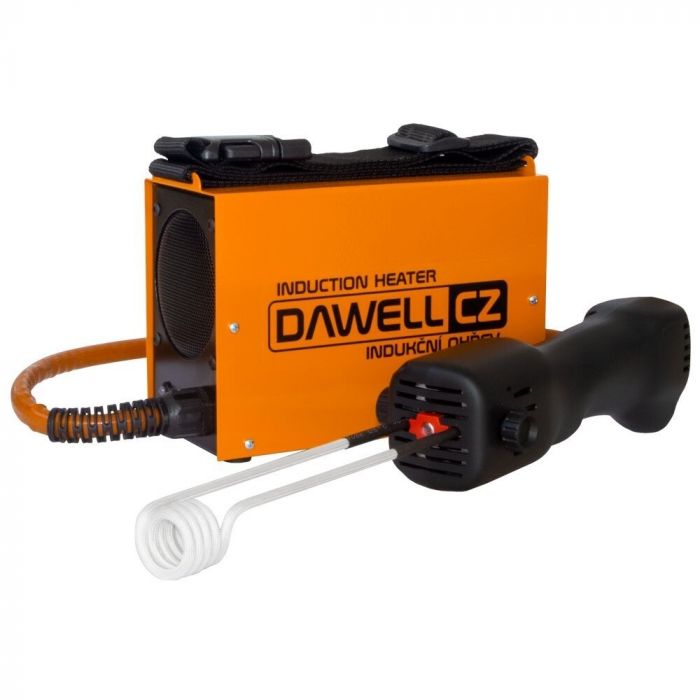

TÕLKIMISEL Applicable in automotive, railway and shipbuilding industry, metalworking and maintenance It finds application in operations that require speed and flexibility and pose a risk of damage around heated parts with naked flame (upholstery, pain, rubber sleeves, electrical installation, etc.). Facilitates removal of rusty bolts and old parts, heating of exhaust pipelines, bolts, nuts, bearings, tools before hardening, gluing, soldering, and ideal for defrosting It replaces heating by oxyacetylene and butane-propane flame Voltage 220V, 50Hz Power supply cable 3 m Coil gun holder 0.7 m Power 1.5 kW / 3.2 kVA Consumption 8 A Do not exceed the operating cycle DHI-15 – 2 minutes heating (on) a 2 minutes cooling (off) Ingress Protection Code IP20 Operating frequency 25 - 60 kHz, automatic adjustment Equipment of protection class I LED illumination in front of the induction coil Protection against overheating and overload of the source and short circuit of the coil Flame- and spark-free heating Fan cooling Output short circuit protection PF (power factor) 0.99 (PFC) Continuous heater / loader 100 % IGBT transistors Coil circuit break protection Dimensions 200 x 140 x 75 mm Set includes 4 pcs heating coils (1 pcs flexible, 1pc flat, and 2 pcs fixed coils 19 mm (M8), 26 mm (M12) Weight 4.5 kg
Extension cords – if necessary, you may use only the following extension cords: up to 5 m with 2.5 mm2 diameter up to 15 m with 4 mm2 diameter When using the device with an alternate source of power – e.g. with mobile electric generator, it is necessary to use a quality alternate source of sufficient power and AVR quality control Use a generator with a power output of at least 3-4 kW, or DC / AC inverter with a power output of 2-3 kW and only with a sine wave – do not use the inverter with a square or quasi-sine wave Failure to comply with the above requirements may result in damage to the device and void the warranty
