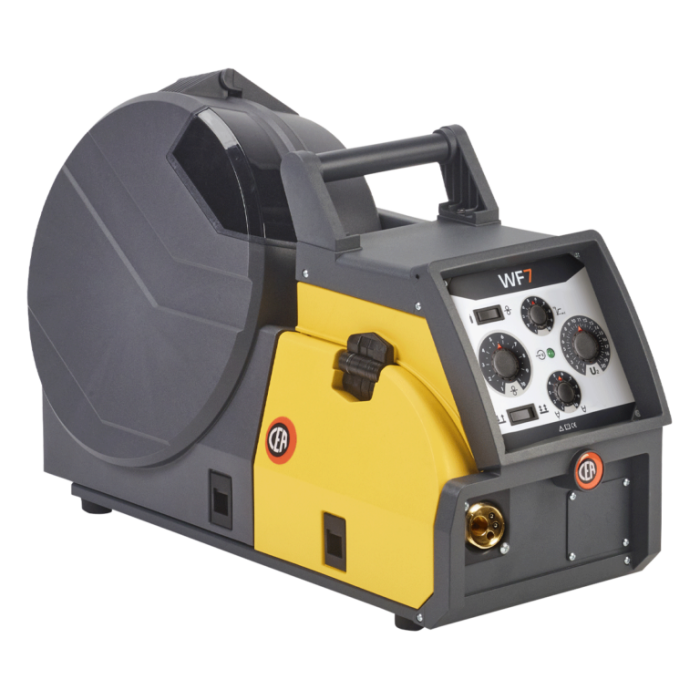

Etteandemehhanism QF7W Prodrive 4 rullikut

Voltage electronic adjustment
Dual-wire rolls allow two different wire types to be available on one drive roll, replaceable without any tool
Graduated knob to achieve the mostcorrect value of the wire pressure,which remains unchanged also afterany arm opening and closing
Wire speed electronic adjustment
External Burn-Back and motor ramp adjustments for a precise arc striking
2 / 4 stroke selector switch
Gas purge and wire inch switch
Excellent stability
Sloping lodging for wire spools (up to d=300 mm / 20 kg)
Robust handle and lifting eyebolt

TECHNICAL DATA WF 7
Single phase input 50/60 Hz V 48
Motor power W 100
Rolls No. 4
Feeding speed m/min 0,5 / 20
Solid wire (steel) d= 0,6 / 2,4 mm
Spool d= 300 mm, max 20 kg
Dimensions (LxWxH) 570 x 275 x 400 mm
Weight kg 17
