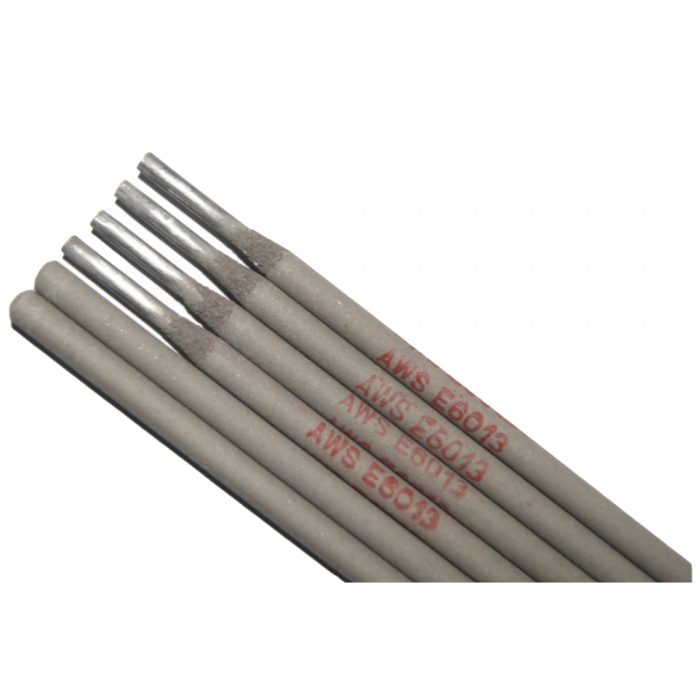

Elektrood 3,2 x 350mm 5kg AC/DC 80-130A E6013

Standard: AWS A5.1 E6013
Keemiline koostis % (Typical) C 0,12; Si ;0,35; Mn 0,3-0,6; S 0,035; P 0,040
Typical Base Material Grades: S235JR, S275JR, S235J2G3 - S355J2G3, S235J2G3 - S355J2G3, S235JRS1 - S235J2S1, S235JRS2 - S235J2S2; P235GH, P255NH, P265GH, P235T1 - P355T1, P235T2 - P355T2, P235G1TH, P255G1TH; L210 - L360NB
Mehhanilised omadused Tõmbetugevus (N/mm2) min. 420; Tensile Strength (N/mm2) min. 330; Löögitugevus (ISO-V/ 0°C) min. 47 J; katkevenivus ((Lo=5do) (%)) min.17
Features and Applications: Resistance to high current; Soft and stable welding; Spatter and fume formations in low amounts; Formation of self-removable slags
Keevitusvool AC; DC(-)
Vastavused ABS BV CCS DNV GL LR NK RINA CE DB
